    Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS07S60S100A
    Certification : CE/RoHS/MSDS/
    Price : negotiate with:wenglin@hngce.com, WhatsAPP me: +86-15570747076
    Supply Ability : 1000 set per month
    Delivery Time : 15-20 day
    • Product Details
    • Company Profile

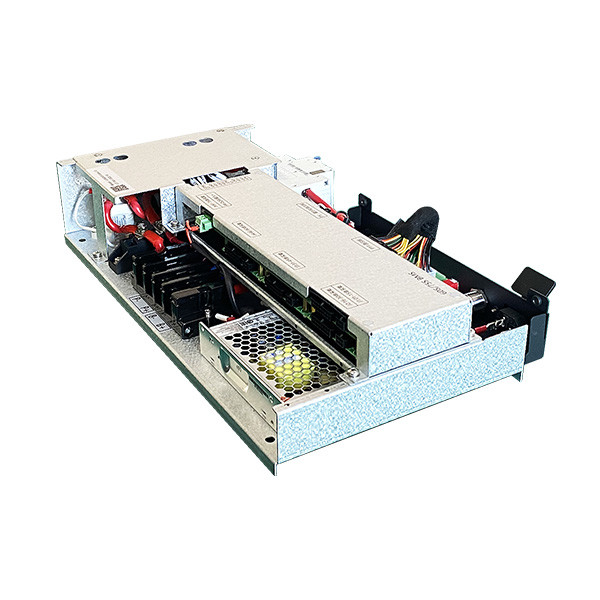

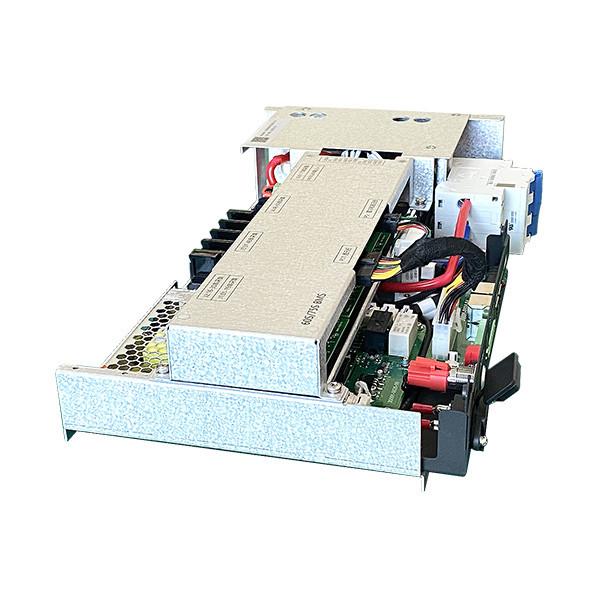

    Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V

    GCE Lifepo4 LFP battery 75S 100A BMS 240V lithium battery BMS with RS485 CAN Communication


    Integrated BMS

    • System Operating Voltage Range:120V-370V
    • Battery Strings: 30S-75S
    • SOC: ≤5%
    • Communication Mode: RS485/CAN
    • Hall Sensor Specifications: 50A/100A
    • Charging Temperature: -10~75℃
    • Discharging Temperature: -20~75℃
    • Power consumption:≤10W
    • Size:410*232*128mm)
    • Net weight:~4.5kg

    1. Protection level:
    2 two levels
    Level 1 cut off charge / discharge
    Level 2 micro cut-off switch, system power down

    2. Operating Temperature:
    Charging : -10~75℃
    Discharging : -20 to 75℃
    Storage : -40 to +75℃
    3. Display mode:
    6-digit LED indicator,
    including 1-bit fault indication,
    1-bit operation indication,
    4-bit SOC power indication
    HMI display: optional
    Hall sensor specifications: 50A/100A
    Maximum load of power components
    Steady-state: 100A
    transient state: 150A/10S( Adjustable)
    Alarm level: 1 Level
    Specification
    1. It is high integrated with less installation space.
    2. Long life cycle, >3000 times at 80% DOD.
    3. It is without heavy metals and is environmentally friendly.
    4. Maintenance-free, there is no memory effect.
    5. Internal BMS with full protection, the battery has high voltage protection with higher reliability.
    6. Master and Slave all in one.
    Product Description
    item
    value
    Place of Origin
    China
    Hunan
    Application
    Solar Energy Storage Systems, Electric Forklifts, Golf Carts
    Brand Name
    GCE
    Model Number
    75 S(5 x 15 S)
    Model
    BMS(Battery Management System)
    Design
    Slave and master BMS all in one
    Voltage
    120 - 228 V
    Current
    100mA ± 10mA
    Strings
    30s-75s
    Communication
    CAN, RS485
    Size
    410*232*128mm
    Application
    Solar Energy Storage Systems, Electric Forklifts, Golf Carts
    BMS(Battery Management System)
    Lithium iron phosphate battery
    Warranty
    3 years

    Integrated High voltage Lifepo4 Lithium Battery BMS 75S 100A 240V
