GCE 30-60S 96V-192V100A integrated BMS 2U iron box bms with hall sensor relay BMS for ESS UPS
Product Name: 30S-60S 100A integrated BMS
Model: RBMS07S60S100A
Application:
1. Home energy storage,BESS
2. Island off-grid energy storage,
3. Micro-grid applications,
4. UPS power supply,
5. Power System 220V DC power supply
6. low speed EV
Integrated BMS introduction:
BMS integrated machine components are BMS main control board, BMU sampling board, high voltage board, switching power supply, Hall sensor, DC contactor, micro switch, power terminal, structural box and wiring harness, etc.; the characteristic is that the main control board Integrate with sampling board and other power devices to keep the system as a secondary architecture. It has the characteristics of compact structure, flexible installation and low cost, and is suitable for integrated installation with small capacity batteries.
30s-75s BMS integrated BMS is a highly integrated intelligent high-voltage battery management system. master bms and slave bms are installed in one machine for about 10-30Kwh battery storage systems or UPS, backup power systems
Integrated BMS is designed by GCE company, it's unique structure with master bms and slave BMS in one machine. It can control 30S to 75S lifepo4,NMC, LTO batteries in series and 7 racks in parallel. Charge and discharge current is 50A-100A, maximum 125A for 10 seconds.
Integrated BMS Structure:
Integrated BMS features:
| 1 | Each 15 strings is a battery collection unit, and 75 series batteries have 5 acquisition units. |
| 2 | 15 probes for every 15 strings, for a total of 15 |
| 3 | current collection uses Hall sensor, safe and reliable, no heat |
| 4 | SOC estimation error ≤ 5% |
| 5 | 3-digit address dialing to set the BMS address; |
| 6 | 3-channel relay dry contact output; |
| 7 | 4-channel contactor expansion and auxiliary contact detection |
| 8 | Provide PC software to facilitate the customer to debug the battery system, or modify the system parameters through the host computer |
| 9 | Support for parallel use (maximum 7 units) |

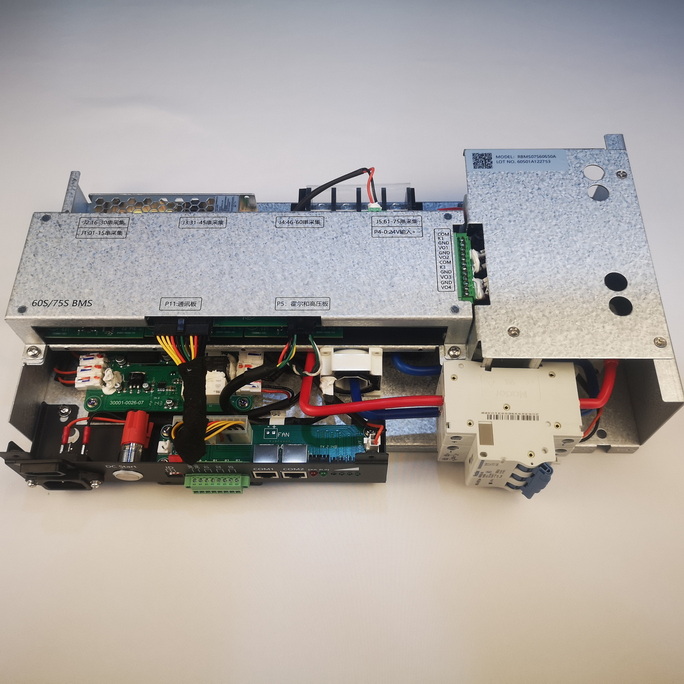

BMS Product physical drawings:
Over 1000pcs delivery every month
High quality, Efficient, Stable and Reliable
| Fault condition | |||
| Fault | indicate | Remarks | |
| 1 | Internal power failure | Long red light | |
| 2 | Internal communication failure (communication error between MCU and AFE) | Long red light | |
| 3 | Single section voltage is higher than 4.1V or lower than 0.5V, or the differential pressure is greater than 2.5V | Long red light | |
| 4 | The temperature is lower than - 30 ℃ or higher | Long red light | |
| than 100 ℃, or the temperature difference is greater than 30 ℃. | |||
| 5 | others | Long red light | |
|
|
