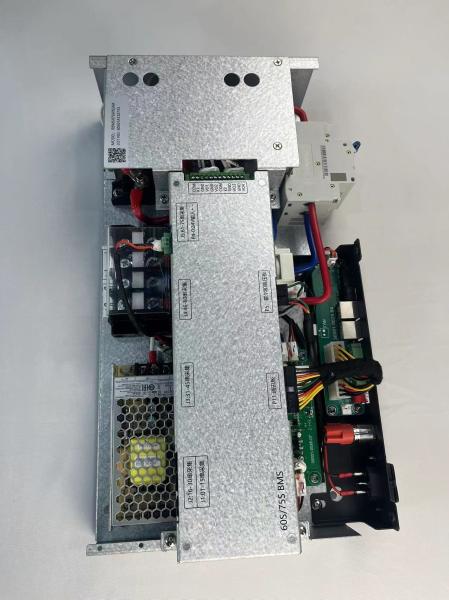

GCE 45S 144V 100A Lifepo4 BMS Battery High Voltage Battery
Management Energy Storage System
Model No.:RBMS07S60S100A
1.It is high integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and
environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage
protection with higher reliability.
6. Master and Slave all in one.
Specification:
Model no.: RBMS07S60S100A
System voltage range: 120 - 228 V DC
Startup mode: DC start (optional AC and DC starter)
Number of battery strings: 75 S(5 x 15 S)
Balance: Equilibrium type , Passive resistance equalization
Balanced current: 100mA ± 10mA(Single cell 3.4V ,
Temperature Sampling Numbers: 12 Battery temperature(4*3)
Sampling accuracy: ± 2℃
Voltage Sampling: Sampling accuracy
Single cell: ±20mV
SOC: ≤5% ,
Communication mode:
CAN: 1 channel (communication with PCs / UPS)
RS485: 1 channel (communication with upper computer / PCS / UPS)
Bluetooth: optional (android app available)
GPRS: optional,
Display mode:
6-digit LED indicator,
including 1-bit fault indication,
1-bit operation indication,
4-bit SOC power indication
HMI display: optional
Protection level:
2 two levels
Level 1 cut off charge / discharge
Level 2 micro cut-off switch, system power down
Operating Temperature:
Charging : －10～75℃
Discharging : -20 to 75℃
Storage : -40 to +75℃
item | value |
Place of Origin | China |
| Hunan |
Application | Solar Energy Storage Systems,Electric Folklifts, Golf Carts |
Brand Name | GCE |
Model Number | 45 S(3 x 15 S) |
Model | BMS(Battery Management System) |
Design | Slave and master BMS all in one |
Voltage | 144V |
Current | 100mA ± 10mA |
Strings | 45s |
Communication | CAN, RS485 |
Size | 410*232*128mm |
Application | Solar Energy Storage Systems,Electric Folklifts, Golf Carts |
BMS(Battery Management System) | Lithium iron phosphate battery |
Warranty | 3 years |
