BMS Lifepo4 4s 100a 12v 180S 576V 250A High Voltage Lifepo4 Battery Energy Management System

4U BMS Solution Details:

Master BMS
Model no.: RBMS07S2-0-250A576V 1set Master BMS, 12sets 15S Slave BMU 12sets 15S Wire Harness 4U standard 19inch case Efficient, stable and reliable Size: 440*178*500mm

Specification

Product Name	BMS
Model no.	RBMS07S2-3-250A576V
protecting method	MCCB+Contactor
Rated Current range	-250A~250A
Voltage Range	384V-1000V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	No(Optional plug in)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	No
Maximum qty of BMUs	20
Power	24VDC(18~28V)
Power consumption	≤20W
Size(W*H*D)mm	4U (482*180*500)
Way out	Front
Tap center	Support(Optional)
Net weight	23kg

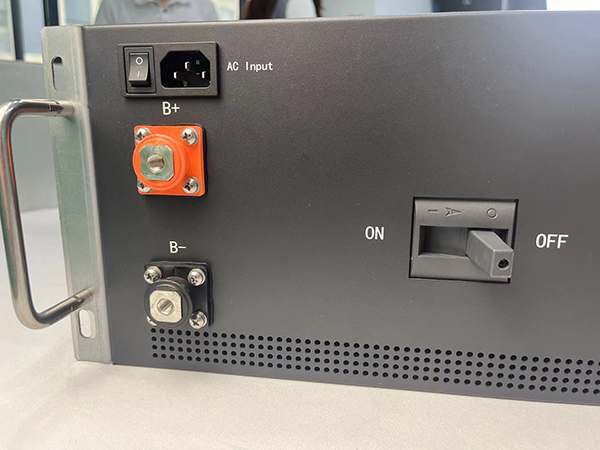

Actual pictures for your reference

Application

1. Devoated in BMS solution over ten years experience

2. Provide energy storage systems solution, BMS, battery pack and so on.

3. Customization solutions meet all your requirements

Packing

Commitment

GCE BMS is committed to complying with and promoting the Corporate Social Responsibility (CSR) policy driven by GCE Group, with its related values channelled into 4 strategic areas:

1.Develop innovative products and processes while striving to minimise environmental impacts

2.Cascade our requirements and those of our customers to our suppliers and partners

3.Develop a team of high-performing personnel who fully support the Group’s integrity-based culture

4.Give priority to exchanges among all stakeholders, guaranteeing they obtain the level of performance they expect in terms of quality, security and cost

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
