BESS ESS high voltage BMS(HV BMS) , Lithium Ion BMS Systems 180S 576V 160A

Ask Lasest Price
Brand Name :	GCE
Model Number :	4U
Certification :	CE/RoHS/SGS/MSDS
Price :	negotiable with wenglin@hngce.com
Supply Ability :	1000 sets/month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

BESS ESS high voltage BMS(HV BMS) , Lithium Ion BMS Systems 180S 576V 160A

LFP LTO NCM BESS UPS Solar ESS Lithium Ion BMS 180S 576V 160A High Voltage Lifepo4 BMS

Model no.: RBMS07S2-0-250A576V

1set Master BMS,

12sets 15S Slave BMU

12sets 15S Wire Harness

4U standard 19inch case

Efficient, stable and reliable

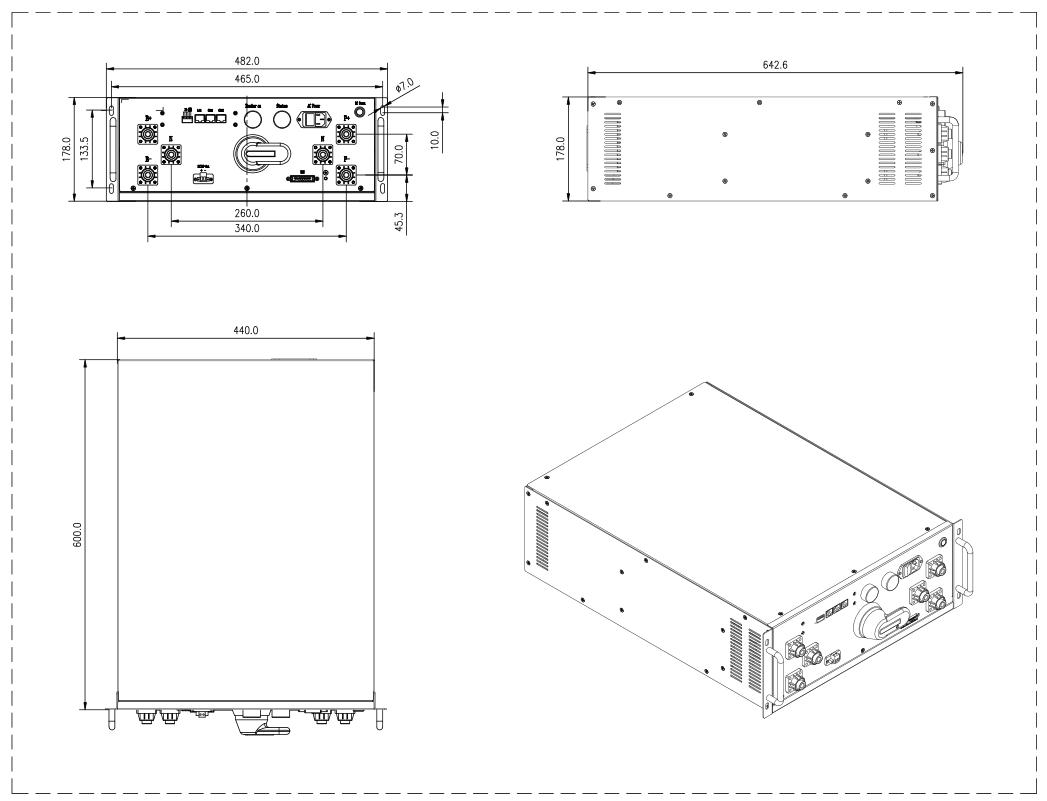

Size: 440*178*500mm

What we made

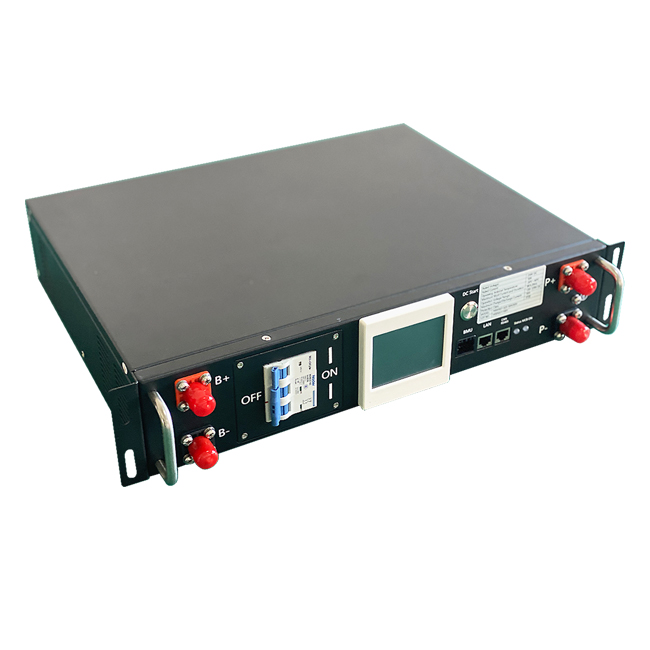

	2U BMS Voltage Range:120V-500V Protecting method: MCCB+Contactor Rated Current range: -50A~50A Voltage Range: 120V-500VCurrent Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: Yes(Optional) Dry contact output :Up to 3 Maximum qty of BMUs:5 Power consumption:≤15W Size:2U (44088500mm) Net weight:~14kg
	3U BMS Voltage Range:120V-680V Protecting method: MCCB+Contactor Rated Current range: -125A~125A Voltage Range: 120V-680V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: Yes(Optional) Dry contact output :Up to 3 Maximum qty of BMUs:13 Power consumption:≤15W Size:3U (482132500mm) Net weight:~15kg

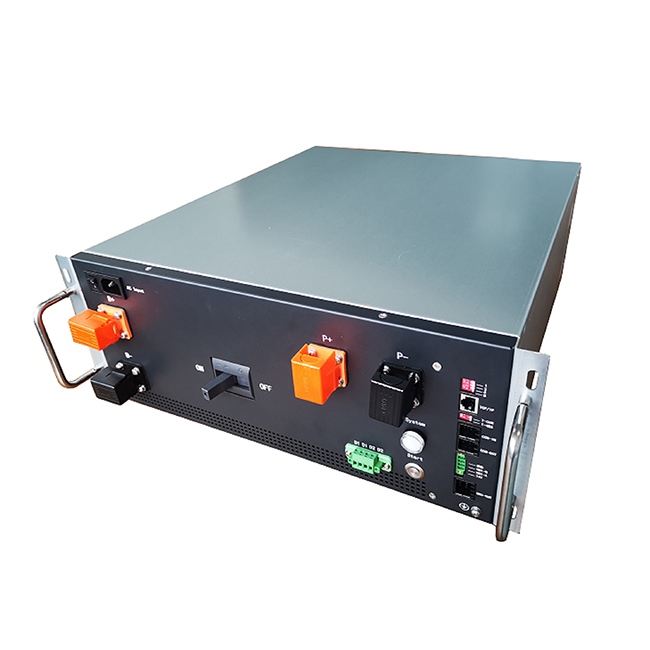

	4U BMS Voltage Range:384V-1000V Protecting method: MCCB+Contactor Rated Current range: -250A~250A Voltage Range: 384V-1000V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤15W Size:4U (482180500mm) Net weight:~22kg
	5U BMS Voltage Range:384V-1000V Protecting method: MCCB+Contactor Rated Current range: -500A~500A Voltage Range: 384V-1000V Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤15W Size:5U(482220500mm) Net weight:~32kg
	Center Tap BMS Voltage Range: 192V(±96V), 288V(±144V), 384V(±192V), 480V(±240V), 576V(±288V), 672V(±336V), 768V(±384V), 864V(±432V) Protecting method: MCCB+Contactor Rated Current range: -250A~250A Voltage Range: 192V(±96V)~864V(±432V) Current Sampling Accuracy: 1.0%FSR Communication interface with BMU: CAN Communication interface with UPS&SBMS:RS485/CAN Communication with monitoring software/EMS: Ethernet Support HMI display and parameter: NO(Optional plug in) Dry contact output :No Maximum qty of BMUs:20 Power consumption:≤25W Size:4U (482180500mm) Net weight:~22kg
	Integrated BMS Strings:30-75S Current:50A,100A System Operating Voltage Range:120V-370V Battery Strings: 30S-75S SOC: ≤5% Communication Mode: RS485/CAN Hall Sensor Specifications: 50A/100A Charging Temperature: -10~75℃ Discharging Temperature: -20~75℃ Power consumption:≤10W Size:410232128mm) Net weight:~4.5kg

Accessoires Including

12S-24S BMU(Slave)

12S-24S BMU has 8pcs of tempreture sensors, Fan voltage 48V(17S-24S
12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication

The company comes with the company's
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.

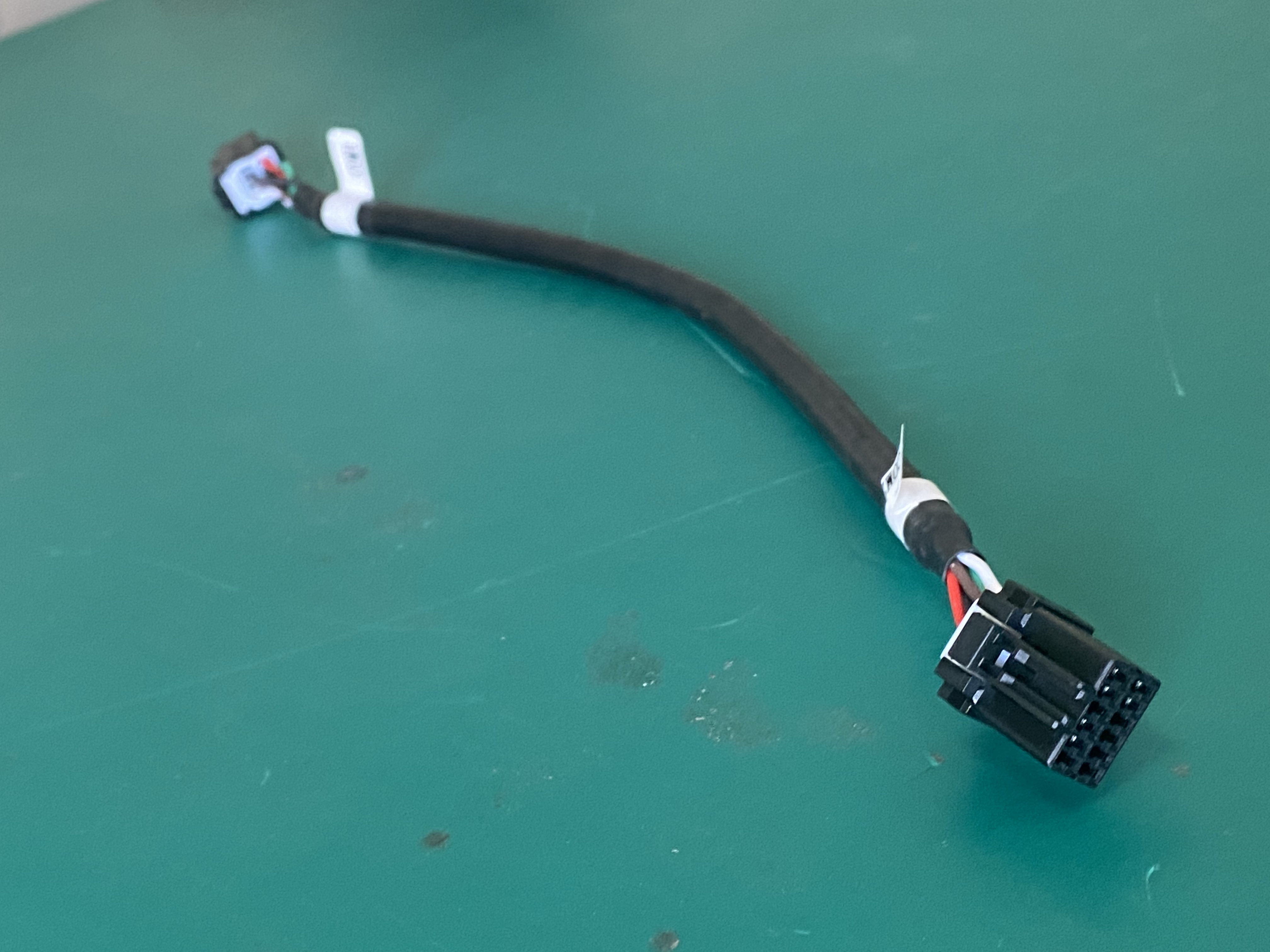

Wire harness-Signal acquisition wire

18 Pin+20Pin wire, standard length is 600mm,900mm,1200mmtempreture
sensor wire: standard length is 600mm,900mm,1200mm
Fan wire: 600mm

Wire harness-communication wire
Communication wire is connecting from master BMS to each BMU with
cascade connection, the last port is for terminal resistance

Specification

Product Name	BMS
Model no.	RBMS07S2-3-160A576V
protecting method	MCCB+Contactor
Rated Current range	-250A~250A
Voltage Range	384V-1000V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS/UPS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	No(Optional plug in)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	No
Maximum qty of BMUs	20
Power	24VDC(18~28V)
Power consumption	≤20W
Size(WHD)mm	4U (482180500)
Way out	Front
Tap center	Support(Optional)
Net weight	22k

Application

1. Devoated in BMS solution over ten years experience

2. Provide energy storage systems solution, BMS, battery pack and so on.

3. Customization solutions meet all your requirements

Packing
