Brand Name : | GCE |
Model Number : | RBMS07S20-400A864V |
Certification : | CE |
Price : | Negotiable with jeffreyth@hngce.com |
Supply Ability : | 1000pcs per month |
Delivery Time : | 20-25days |

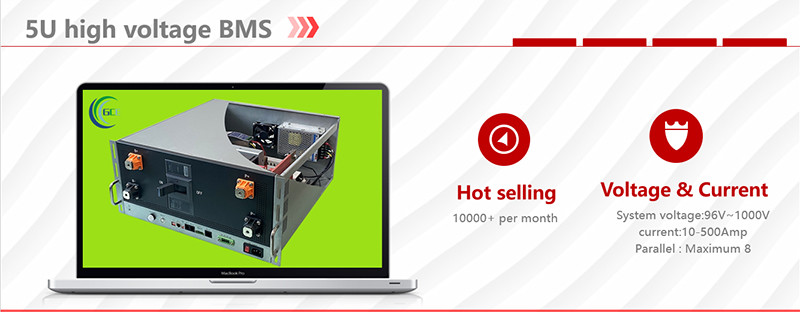

GCE 864V 400A 5U case master BMS relay contactor BMS insulation
display 270 series parallel function for ESS UPS
Our high voltage BMS(HV BMS) has complete battery charge and
discharge control logic and balance function between batteries. We
can also set various parameters of the system according to the
actual needs of customers to ensure the stability, reliability and
efficient performance of the system.
Our high-voltage BMS includes slave control BMU, harness and
standard 19 inch master control BMS chassis. The slave control BMU
is installed into each battery module, and then connected to the
master control BMS through cascade mode.
This is our the 4th generation high voltage BMS(HV BMS).It's an
overall bms solution, that is to say,You don't need professional
technology to install our high-voltage BMS to form a complete
battery system.
CBMS | 2U-50A | 3U-125/160A | 4U-250A | 5U-400A | 5U-500A-D |
protecting method | MCCB+Contactor | MCCB+Contactor | MCCB+Contactor | MCCB+Contactor | MCCB+Contactor |
Rated Current range | -50A~50A | -125A~125A | -250A~250A | -400A~400A | -500A~500A |
| 120V-500V | 120V-680V | 384V-1000V | 384V-1000V | 384V-1000V |
Current sampling accuracy | 1.0%FSR | 1.0%FSR | 1.0%FSR | 1.0%FSR | 1.0%FSR |
Communication interface with PCS | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN |
Communication interface with BMU | CAN | CAN | CAN | CAN | CAN |
Communication interface with GBMS | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN | RS485/CAN |
Communication with monitoring software/EMS | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
Support IAP upgrade | Yes | Yes | Yes | Yes | Yes |
Support HMI display and parameter settings |
| Yes(Optional) | No(OptionalPlug in) | No(OptionalPlug in) | No(OptionalPlug in) |
Insulation detection | none | Yes(Optional) | Yes(Optional) | Yes(Optional) | none |
High voltage power module | Support DC start (optional) | Support DC start (optional) | Support DC start (optional) | Support DC start (optional) | Support DC start (optional) |
Dry contact output (normally open) |
|
| None | None | None |
Maximum qty of BMUs | 5 | 13 | 20 | 20 | 20 |
Power supply | 24VDC(18~28V) | 24VDC(18~28V) | 24VDC(18~28V) | 24VDC(18~28V) | 24VDC(18~28V) |
Power consumption | ≤20W | ≤20W | ≤25W | ≤20W | ≤20W |
(W*H*D)mm | 2U (440*88*500) | 3U (440*133*500) | 4U (440*178*600) | 5U (440*223*600) | 5U (440*223*650) |
Wire Way out | Back and front | Back and front | Back and front | Front | Front |
Tap center | not support | not support | support(optional) | support(optional) | support(optional) |
net weight | 14kg | 17kg | 23kg | 38kg | 42kg |
![]() |
