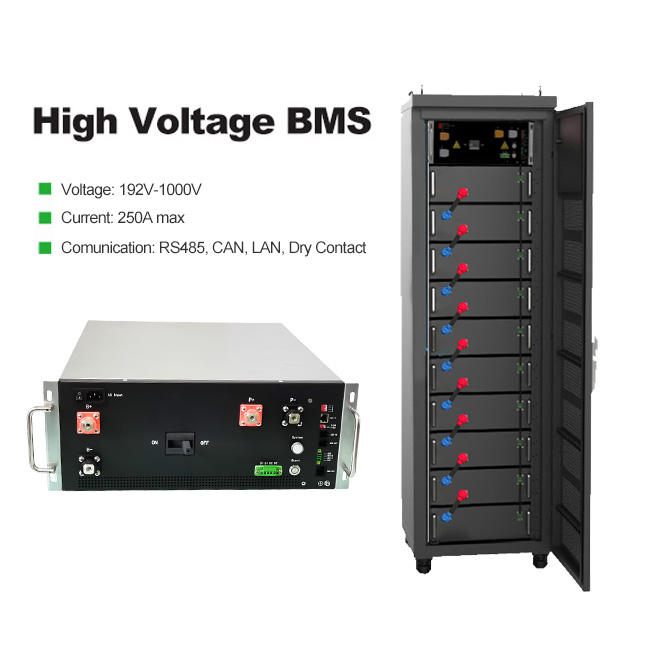

GCE High voltage battery management system

Bms For Lifepo4 Battery Pack 384V 120S BMS high voltage BMS(HV BMS) 250A 480V 624V 864V 1000V Master Slave BMS GCE Relay BMS

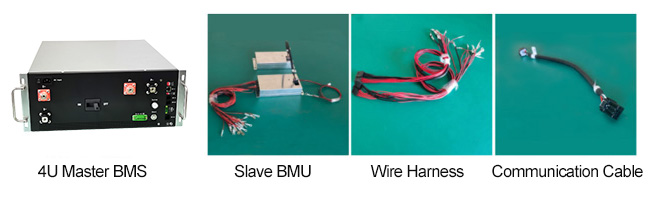

BMS Configuration

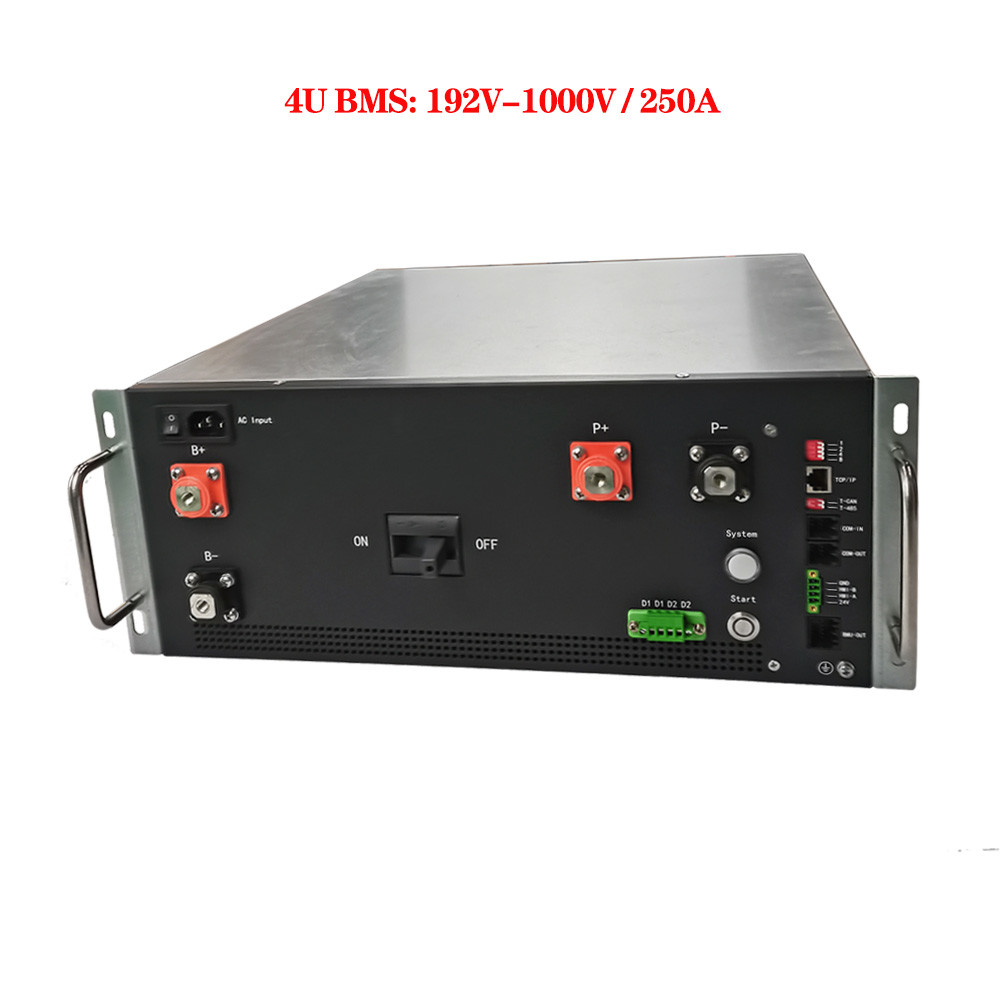

120S 384V 250A high voltage BMS(HV BMS) * 1set

20S BMU * 6sets

20S wire harness *6sets

(15S48V battery module, 6 modules in series for 120S 384V 250A system)

BMS Features

* Multiple commmunication interface
RS485, CAN, Ethernet, dry contact input and output interfaces, which can establish communication with most PCS and inverter in the market.

* With 3.5inch / 7inch HMI display
Perfect self-test and running status detection function, with HMI display screen, the system running information is clear at a glance.

* Intelligent Cell Balancing
Efficient passive balancing is used to maximize the usable capacity of battery packs.

* Field Programmable
Parameters such as voltage ranges, current limits and many other settings are easily field changeable.

* Current & Voltage Protection
Protects the battery pack from over-charge and over-discharge thereby extending cycle life.

* Thermal Management
Over-temperature and under-temperature protection with fan controls for cooling or heating.

* Health Monitoring
Monitors internal resistance of individual cells and the measured capacity of the battery pack.

Application

Battery Energy Storage System(BESS)
Off-grid energy storage
Data Center
Grid frequency modulation energy storage
Track power / traction
LFP UPS power supply

Specification

Hunan group control energy technology Co., Ltd. (GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment.

working in the factory:

 The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.

By mastering the core technology of BMS and inventing on this basis, our company has developed a variety of lithium battery peripherals to meet the high-quality needs of the market.
