To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07S2-3-400A512V |
| Certification : | CE |
| Price : | Please contact: ellen@hngce.com |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 5000sets / Month |
| Delivery Time : | 10-15 work days |
GCE 160S 512V 400A 500A high voltage BMS(HV BMS) 384V-1000V Battery Management System With CANBUS RS485 15S 16S BMU For UPS ESS
BMS Configuration
160S 512V 400A high voltage BMS(HV BMS) * 1set
16S BMU * 10sets
16S wire harness * 10sets
(16S51.2V battery module,10 modules in series for 160S 512V 400A
system)
Application
BMS for UPS
BMS for Data Center
BMS for Battery Energy Storage System (BESS)
BMS for Off-grid / Hibrid Energy Storage
BMS for ESS
BMS for Wind Energy Storage
BMS for Power Station
Specification
Product Name | 160S 512V 400A High Voltage BMS |
Model no. | RBMS07S2-3-400A480V |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A |
Voltage Range | 450V-1000V |
Current Sampling Accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with SBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter | Yes(Optional) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | Up to 3 |
Power | 24VDC(18~28V) |
Power consumption | ≤20W |
Size(W*H*D)mm | 4U (440*133*500) |
Tap center | Not support |
Net weight | 32kg |

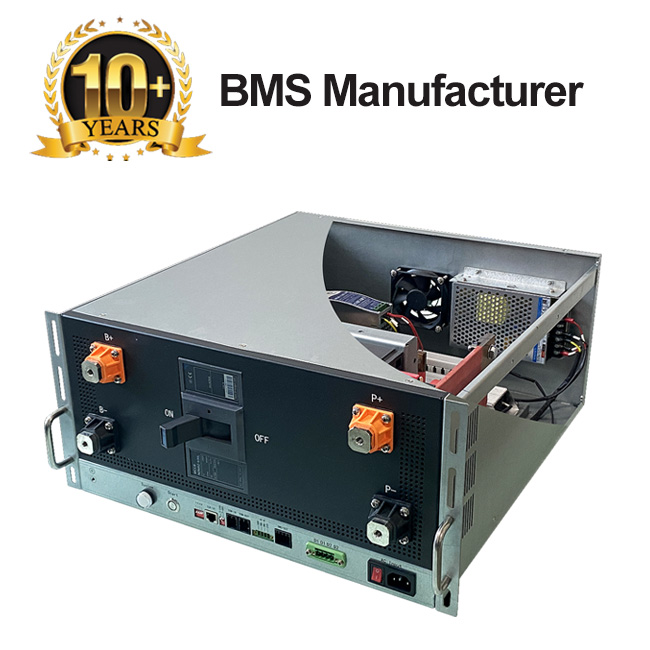

Product Display
Why are battery management systems (BMS) needed and how do they work?
Battery management systems (BMS) are electronic control circuits
that monitor and regulate the charging and discharge of batteries.
The battery characteristics to be monitored include the detection
of battery type, voltages, temperature, capacity, state of charge,
power consumption, remaining operating time, charging cycles, and
some more characteristics.
Our Company
Hunan GCE Technology Co., Ltd. is a high-tech company specializing in the R & D and production of high voltage BMS(HV BMS) for UPS, ESS, Solar Energy Storage and etc.
30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users.
60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
