To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07-S20-400A576V |
| Certification : | CE UL TUV |
| Price : | negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 1000sets/month |
| Delivery Time : | 20~25days |
GCE 576V 180S 400A Lifepo4 BMS lithium battery management system BMS for
solar energy system UPS power LFP lithium-ion batteries
High Voltage Master BMS:
One complete set of HV 180S576V 400A BMS solutions includes:
1set Master BMS, Model#: RBMS07-S20-400A576V
12sets 15S Slave BMU Model#: BMU07-15S8T48F
10sets 15S Wire Harness(including voltage&temperature sensoring wires, BMU communication wires,
Fan power wire.)
Linkage for downloading specifications for Master BMS and Slave BMU:
GCE_RBMS specification--EN--V1.0.pdf
GCE 12-16S BMU-specification-UL-V1.0.pdf
Linkage for downloading of BMS demand information collection form:
high voltage BMS info collection form EN2021-04.do...
We mainly have two BMS Categories, both applicable to Lifepo4 batteries, MnNiCo ternary batteries,
Lithium Titanate batteries.
Integrated BMS (the 30S/96V~75S/240V, Max. 100A),
master BMS and Slave BMU all in one design. compact size.
Separated BMS(the 60S/192V~270S/864V, Max. 500A),
master BMS and Slave BMU separately installed,
flexible in assembly.
| Product Name | BMS(Battery Management System) |
| Model no. | RBMS07-S20-400A576V |
| protecting method | MCCB+Contactor |
| Rated Current range | -250A~250A(Max. 500A) |
| Voltage Range | 96V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plugin) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 4U (482*180*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 38 kgs |

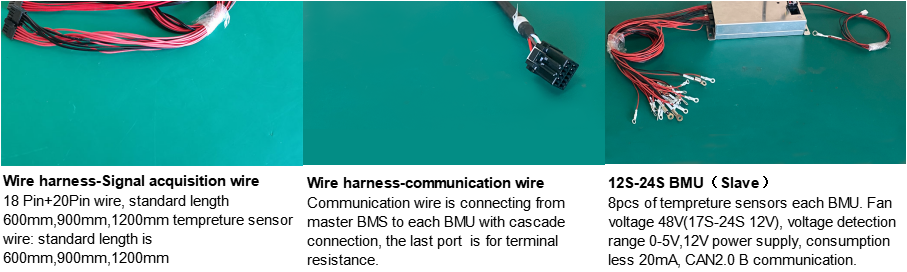

Accessories:
Product Features:
Perfect and reliable system control and protection strategies to fully protect the battery safety, and extend the life of the battery escort.
Modular design, configurable, scalable --- flexible combination of multiple energy storage units can be expanded to a larger energy storage system, the maximum can support 272 (lead-carbon battery 400) battery series.
Capacity is big --- Built-in large-capacity memory chips can store a large number of key operational data, but also can install an SD card for offline access.
Flexible communication interface protocol --- The company comes with the company's communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.
PCS has a protocol control function, the choice of circuit breaker version. PCS without protocol control function, the choice of contactor + breaker version.
Automatic circulation control and automatic parallel machine offline control can be easily parallel batteries. (Model suffix selection D).
SYSTEM STRUCTURE:
Applications:
|
|
