GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System

Ask Lasest Price
Brand Name :	GCE
Model Number :	5U
Certification :	CE/RoHS/SGS/MSDS
Price :	negotiable with wenglin@hngce.com
Supply Ability :	1000 sets/month
Delivery Time :	15-20 days

Add to Cart

Product Details
Company Profile

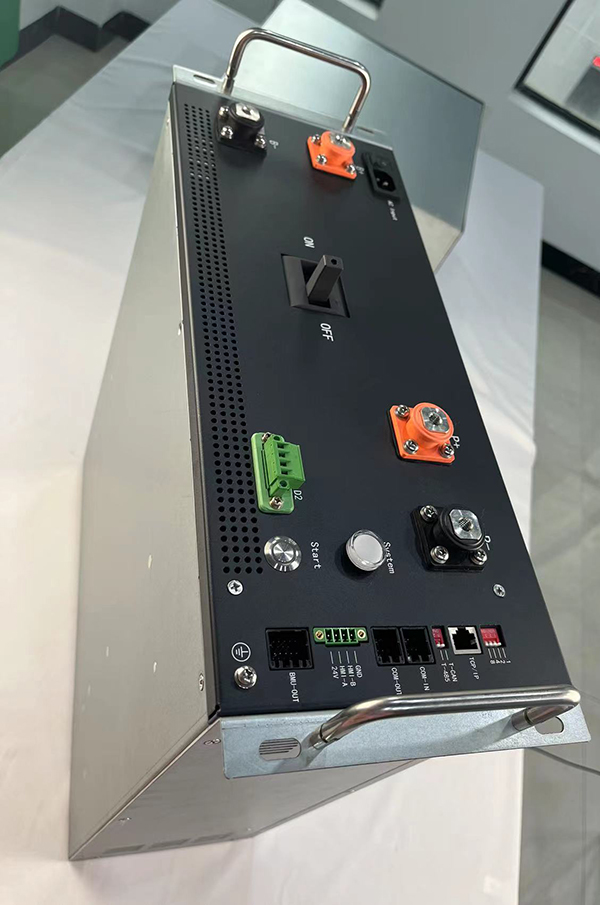

GCE 768V 160A UPS BMS Lifepo4 Bms 48v Battery Management System

GCE 768V 160A Lifepo4 Master Slave High Voltage 48v BMS Lifepo4

Model Number:RBMS07S2-3-160A768V

Quick Details

Place of Origin:: China

Brand Name:: GCE

Model Number:: RBMS07S20160A768V

Battery Type:: high voltage BMS(HV BMS)

Battery Type::: LFP/NMC/LTO

communication::: Rs485/CAN/LAN/dry contact

Voltage::: 768V

Current::: 160A

Application::: BESS/UPS

module strings::: 15S*16pcs

Power:: 24VDC(18~28V)

Power consumption:: ≤20W

Product Details

1. Advanced Battery Management System --- The highly integrated
battery management system enables seamless monitoring.
2. perfect self-test and operational status detection, with HMI
display, system operation information at a glance.
3. perfect and reliable system control and protection strategies to
fully protect the
battery safety, extend the life of the battery escort.

Specification

Product Name	BMS
Model no.	RBMS07S2-3-160A768V
protecting method	MCCB+Contactor
Rated Current range	-250A~250A
Voltage Range	384V-1000V
Current Sampling Accuracy	1.0%FSR
Communication interface with PCS	RS485/CAN
Communication interface with BMU	CAN
Communication interface with SBMS	RS485/CAN
Communication with monitoring software/EMS	Ethernet
Support IAP upgrade	Yes
Support HMI display and parameter	No(Optional plug in)
Insulation detection	Yes(Optional)
High voltage power module	Support DC start (optional)
Dry contact output (normally open)	No
Maximum qty of BMUs	20
Power	24VDC(18~28V)
Power consumption	≤25W(Three wire systems); ≤15W(Two wire systems)
Size(WHD)mm	4U (482180500)
Way out	Front
Tap center	Support(Optional)
Net weight	23kg

Our comapny

Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech
company specializing in the research and development of BMS and
lithium battery peripheral equipment.

We are ready to share Information, Experience and Solutions in BMS
(Battery Management System) Solar Power Investment.

Also to help Partners Optimize Investment Capital, Develop lifepo4
battery - Renewable Power sources widely.

At the same time, anticipate and well control the risks in Battery Project , Solar Power Project and Electrical Power System Project BMS Management.
