To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07-S20-250A528V |
| Certification : | CE UL TUV |
| Price : | negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 1000sets/month |
| Delivery Time : | 20~25days |
GCE 528V 250A Relay DC High Voltage Master BMS For Lifepo4 BMS Sistemas
De Energia Solar BESS UPS EV BESS with 15S BMU 16S BMU 100ah causal
solar power For LFP NCM LTO BESS UPS Solar For solar energy system UPS
power For Lifepo4 lithium-ion batteries For UPS ESS Solar BESS. High Voltage
battery energy storage systems Lifepo4 battery BMS For Large scale ESS
Container BESS Micro Grid ESS Home ESS Solar Carport ESS
Overall Solution BMS Battery Management System
Overall Solution BMS Configuration:
One complete set of HV 165S528V 250A BMS solutions includes:
1set Master BMS, Model#: RBMS07-S20-250A528V
11sets 15S Slave BMU Model#: BMU07-15S8T48F
11sets 15S Wire Harness, including voltage&temperature sensoring wires, BMU communication wires,
Fan power wire.

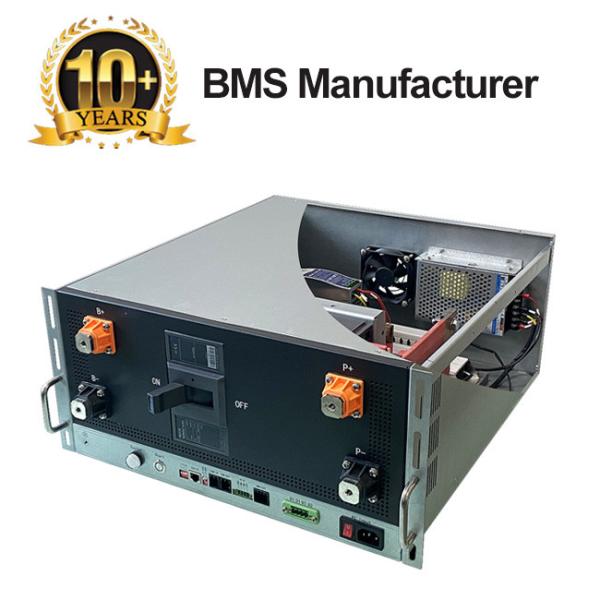

High Voltage Master BMS:
Specification:
| Product Name | BMS(Battery Management System) |
| Model no. | RBMS07-S20-250A528V |
| protecting method | MCCB+Contactor |
| Rated Current range | -250A~250A(Max. 500A) |
| Voltage Range | 96V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plugin) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 4U (482*180*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 30 kgs |
BMS SYSTEM STRUCTURE:
Applications:
FAQ:
· Q: Are you a manufacturer or simply a trading company?
A: We are a professional BMS manufacturer, committed in this filed
over 10 years.
· Q: Can I get some samples?
A: Yes, a sample order is available for quality checking and market
testing.
· Q: What kind of cells we offer?
A: LFP, NMC, LTO
· Q. How about the lead time?
A: It usually takes about 15-20 working days, but it is also
depends on your detail specification of order and quantity you ordered.
· Q. Terms of payment?
A: T/T is the main payment term, if you want do other payment terms
please contact us in details.
· Q. Can customization requirements?
A: Yes, we can offer logo custom, color custon and packaging
custom, MOQ at least 50 sets.
· Q: How does your factory do regarding quality control?
A: Quality always comes first. All our products go through strict
quality control processes from incoming material to the assembling
process. Each product will be tested before packing & shipping.
· Q: Trade Terms we accepted
A: Usually we do EXW terms under the amounts smaller than 5000USD, but if you want do other terms also ok for us but please contact us
for further communication for more detailsfor orders
Documents Download:
Linkage for downloading specifications for Master BMS and Slave BMU:
GCE_RBMS specification--EN--V1.0.pdf
GCE 12-16S BMU-specification-UL-V1.0.pdf
Linkage for downloading of BMS demand information collection form:
high voltage BMS info collection form EN2021-04.do...
For more information about the product, please contact me.
