Product Description:

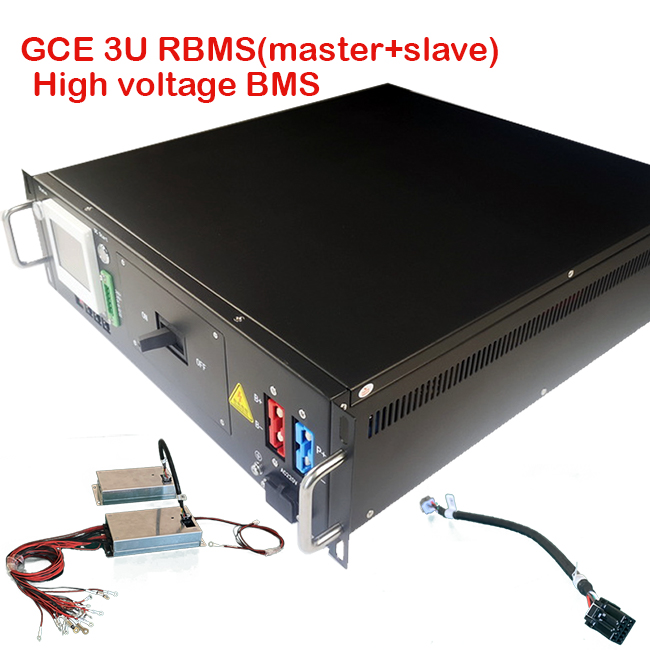

RBMS07-S23-125A480V denotes a high-voltage Master Battery
Management System (BMS) without parallel functionality and a
3.5-inch embedded screen. Moreover, it utilizes a two-wire system
(without mid-line). It is equipped with a maximum rated current of
125A and a rated voltage of 600V.
PRODUCT SYSTEM OVERVIEW:
RBMS is a battery management system developed for large-scale
high-voltage battery energy storage system and UPS application.
Distributed architecture and modular design concept are adopted, which is highly configurable and easy to assemble, debug
and maintain. It is suitable for various battery energy storage systems with DC voltage below
600V. The product can be configured as a secondary architecture (BMU + RBMS) at least, which
is suitable for 10kwh-100kwh. Cooperating with industrial computer and battery stack
management software, a three-level architecture (BMU + RBMS + SBMS) can be formed, which is
suitable for 50kwh-2mwh occasions. Cooperating with the server and power station battery
management system software,a four-level architecture can be formed(BMU + RBMS + SBMS + BBMS),
suitable for occasions from 2MWh to 1000MWh to meet different project needs.
Applications:
1.Photovoltaic power station energy storage.
2.Island off-grid energy storage.
3.Commercial and industrial energy storage
4.Micro-grid,BESS.
5.UPS power supply.
6. Power System 220V DC power supply
Technical Parameters:
| Max Current | 125A |
Max voltage | 350V.600V(Optional) |
Power consumption | ≤15W |
Current sampling accuracy | 1%FSR |
Insulation withstand
voltage | 2800VDC ＜1mA
1min |
Protection level | IP20 |
Dimension(W*H*D) | 482*132*500(mm) |
Net Weight | ~15Kg |
| Communication port with BMU | CAN |
Communication port with UPS | RS485/CAN |
Communication port with SBMS | RS485/CAN |
Communication with monitoring software | Ethernet |
| Battery charge&discharge Management | available |
Battery Temperature Management | available |
IAP Upgrade | available |
System protection parameter setting | available |
Short circuit protection | available(20KA 20ms) |
Pre-charge function | available |
Parallel circulation control | available |
Event record | Available 5000pieces |
DC power Start | available (battery powered, municipal power as on / off signal) |
| Insulation detection | Applicable to system voltage ≧300V |
HMI display | 3.5 inches display (embedded inside the cabinet) |
Stand-alone or parallel function | Set up before leaving the factory |
Dry contact | Maximum 2 dry contact outputs (optional) |
| Appearance, Color | RAL9005 Black sand grain |
Installation method | Suitable for standard 19-
inch cabinet installation |
Incoming and outgoing line mode | Front side in and front side out. |
Operating ambient temperature | -20℃~60℃ |
Operating ambient humidity | 5%~75%RH |
Comply with National standards | GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 |
Safety Certification | Comply with CE certification standards |
Packing and Shipping:
Packaging and Shipping
high voltage BMS(HV BMS) is securely packaged and shipped in
accordance with industry standards. The product is inspected for
any damages before being placed in a durable box for shipment. The
box is sealed to ensure that the contents are not tampered with
during transit. The product is shipped with tracking information
and delivery confirmation.
FAQ:
1. Are you a manufacturer or simply a trading company?
We are a manufacturer, and we sincerely welcome you to visit our
factory.
2. Can I get some samples?
Yes, a sample order is available for quality checking and market
testing.
3. What kind of cells are applicable to this Battery Management
System?
LFP, NCM, LTO
4. How about the delivery time?
The lead-time usually takes about 15 to 20 working days accordingly
to the specification of your order and quantity.
5.What are your terms of payment?
Advanced T/T is the main payment term, and other payment terms are
negotiable. Please contact us, we’ll discuss the details.
6. What are your warranty terms?
We offer a 3-year warranty for RBMS,1-year warranty for PCB.
7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small
adjustments.
8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict
quality control processes from incoming material to the assembling
process. Each product will be tested before packing & shipping.
9. What Trade Terms are available?
No limitation on the trade terms. We normally do EXW for orders
amounts smaller than 20000USD, and FOB for the rest ones.
Moreover,we can send BMS via DHL&UPS&FEDEX quickly and
easily.
10. Is your BMS easy and convenient to install&test?
This is our the 4th generation high voltage BMS(HV BMS).It's an
overall bms solution, that is to say, you don't need professional
technology to install our high-voltage BMS to form a complete
battery system.
11.What benefits do customers get?
Our high voltage BMS(HV BMS) has complete battery charge and
discharge control logic and balance function between batteries. We
can also set various parameters of the system according to the
actual needs of customers to ensure the stability, reliability and
efficient performance of the system.
