To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07-S20-500A480V |
| Certification : | CE/RoHS/SGS/MSDS |
| Price : | negotiable email with wenglin@hngce.com |
| Delivery Time : | 15-25 days |
| Payment Terms : | FOB/CFR/EXW |
| Supply Ability : | 5000 sets/month |
The Battery Management System is a lithium ion battery management system designed for high voltage BMS(HV BMS) applications. This system is suitable for use with both LiFePO4 and other lithium-ion batteries, and offers advanced monitoring and control. It provides real-time information on the state of the battery and can store up to 5000 events for record keeping. It supports communication through CAN/RS485 and has an operating ambient humidity of 5%~75%RH, and is available in RAL9005 Black Sand Grain color.
Are you looking for reliable and efficient power storage solutions? Look no further than our extensive range of power storage applications.
We specialize in providing reliable PV power plant storage solutions for island off-grid energy storage systems. Our optical storage charge integration applications are perfect for micro-grid applications. Moreover, we offer UPS power supply for both power systems 220V AC and rail transit 110V DC.
We guarantee the highest quality container ESS and solar ESS solutions available on the market. After thorough research and development, our products are proven to be reliable and efficient.

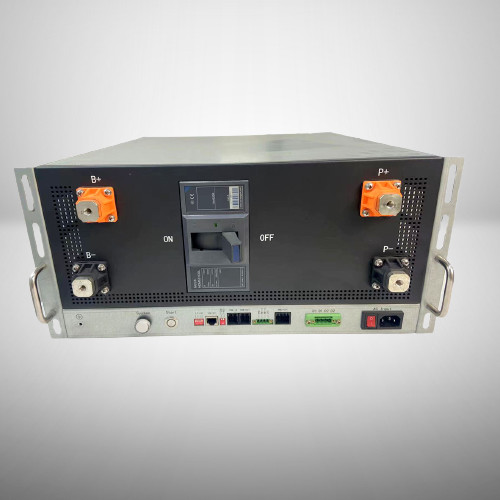

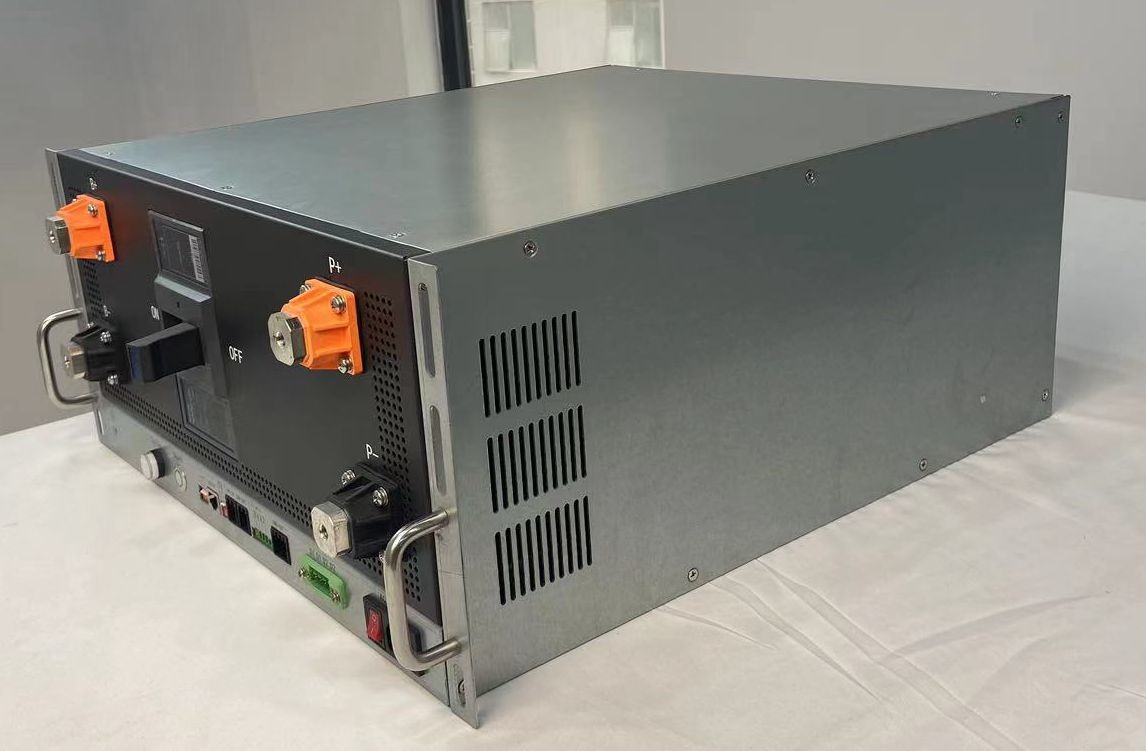

GCE RBMS07-S20-500A480V Battery Management System
Brand Name: GCE
Model Number: RBMS07-S20-500A480V
Place of Origin: China,Hunan
Certification: CE/RoHS/SGS/MSDS
Minimum Order Quantity: 1set
Price: Negotiable. Please email with wenglin@hngce.com for more
details.
Packaging Details: Corrugated Carton, bundles, pallets, wooden box
Delivery Time: 15-25 days
Payment Terms: FOB/CFR/EXW
Supply Ability: 5000 sets/month
Voltage Range: 92V-1500V
Communication port with BMU: CAN
Color : RAL9005 Black Sand Grain
Communication port with UPS: RS485/CAN
Battery Type: Lithium-ion(LFP)/NMC/LTO
GCE RBMS07-S20-500A480V Battery Management System is a master-slave bms, specially designed for backup battery system and lithium ion battery management system. It comes with CE/RoHS/SGS/MSDS certification and voltage range from 92V to 1500V. It has CAN communication port with BMU and RS485/CAN communication port with UPS. The color of the system is RAL9005 Black Sand Grain. The minimum order quantity is 1set, and the delivery time is 15-25 days. The payment terms is FOB/CFR/EXW, and the supply ability is 5000 sets/month. Price is negotiable, please email with wenglin@hngce.com for more details.
| Basic Parameters | Max. current | 400A.500A(Optional) |
| Max. voltage | 350V.750V.1000V(according to the rated voltage) | |
| Power consumption | ≤15W | |
| Current sampling accuracy | 1%FSR | |
| Insulation withstand voltage | 2800VDC ＜1mA 1min | |
| Protection level | IP20 | |
| Size(W*H*D) | 485*220*550(mm) | |
| New Weight | ~32Kg | |
| Communication Interface | Communication port with BMU | CAN |
| Communication port with UPS | RS485/CAN | |
| Communication port with SBMS | RS485/CAN | |
| Communication with monitoring software | Ethernet | |
Basic Function | Battery charge & discharge management | Available |
| Battery temperature management | Available | |
| IAP Upgrade | Available | |
| System protection parameter setting | Available | |
| Short circuit protection | Available(45KA 20ms) | |
| Pre-charge function | Available | |
| Parallel circulation control | Available | |
| Event record | Available (5000) | |
| Dual power supply | Available(Battery + municipal power supply, municipal power in priority) | |
| Optional function | Insulation detection | Suitable for systems with voltages above 300V |
| HMI display | 3.5 inches, 7 inches optional (external) (optional) | |
| Stand-alone or parallel function | Set up before leaving the factory | |
| Dry contact | Maximum 2 dry contact outputs (optional) | |
| Others | Color | RAL9005 black sand grain |
| Installation method | Suitable for standard 19-inch rack installation | |
| Incoming and outgoing wire method | Front side in and front side out. | |
| Operating ambient temperature | -20℃~60℃ | |
| Operating ambient humidity | 5%~75%RH | |
| Comply with National standards | GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 | |
| Certification | Comply with CE certification standards |
At Battery Management System, we are committed to providing our customers with the highest quality technical support and service. We strive to provide customers with the best possible customer experience by providing them with the most accurate, up-to-date information regarding our products and services.
Our technical support team is available 24/7 to answer any questions you may have about Battery Management System products and services. We can provide troubleshooting advice, installation assistance, and product information. We also offer software downloads and updates.
Our service team is available to help you with any warranty issues, repairs, and maintenance. We can also provide replacement parts and upgrades when necessary. We take pride in providing timely and reliable service for our customers.
All Battery Management System components and accessories must be securely packaged in protective materials. The packaging must be designed to protect the Battery Management System’s internal components and external surfaces from damage during transport and handling.
The Battery Management System should be shipped in accordance with applicable national, regional, and international laws and regulations. The shipment must be securely and properly labeled with the product name and all relevant identifying information.
|
|
