    60S 50A Master Slave BMS lithium battery management system 192V BMS for lifepo4 battery pack UPS BESS

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS07-S-60S50A
    Certification : CE/RoHS/MSDS
    Price : negotiate with emma@gcebms.com
    Delivery Time : 15-25 days
    Payment Terms : L/C, T/T
    Supply Ability : 5000 sets/per month
    • Product Details
    • Company Profile

    60S 50A Master Slave BMS lithium battery management system 192V BMS for lifepo4 battery pack UPS BESS






      • 30-60S 50Amp


    Communication protocol:
    CAN, RS485, Bluetooth, GPRS,Dry Contact

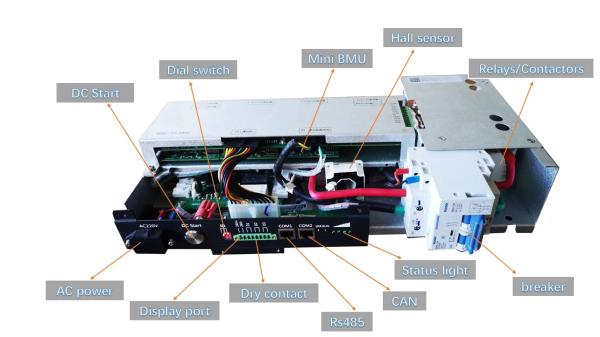

    * Design: Master & Slave all in one
    * Efficient, stable and reliable * size:W410*H232*D128cm

    Unique Design

    It is the latest product developed by GCE and it's unique in the market.

    For 30S-75S Lithium Battery Packs

    Integrated BMS supports 30S-75S lithium battery packs.

    For 30S-75S Lithium Battery Packs

    30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries less than 100Ah. It greatly reduce the cost of users.
    Specification
    Product Name
    Integrated BMS(master slave together in one)
    Model no.
    RBMS07S60S50A
    System voltage range
    120 - 370 V DC
    Startup mode
    DC start (optional AC and DC starter)
    Number of battery strings
    60 S(4 x 15 S)
    Balance
    Balance type
    Passive resistance equalization
    Balanced current
    100mA ± 10mA(Single cell 3.5V )
    Temperature Sampling
    Numbers
    12 Battery temperature(4*3)
    Sampling accuracy
    ± 2℃
    Voltage Sampling
    Sampling accuracy
    Single cell ±20mV
    SOC
    ≤5%
    Communication mode
    CAN: 1 channel (communication with PCs / UPS)
    RS485: 1 channel (communication with upper computer / PCS / UPS)
    Bluetooth: optional (android app available)
    GPRS: optional,
    Display mode
    6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication
    HMI display: optional
    Hall sensor specifications
    50A/100A
    Maximum load of power components
    Steady-state:100A
    transient state:150A/10S( Adjustable)
    Alarm level
    1 Level
    Protection level
    2 two levels
    Level 1 cut off charge / discharge
    Level 2 micro cut-off switch, system power down
    Operating Temperature
    Charging : -10~75℃
    Discharging : -20 to 75℃
    Storage : -40 to +75℃
    Product Feature
    1.It is high integrated with less installation space. 2.Long life cycle, >3000 times at 80% DOD. 3.It without heavy metals and environment friendly. 4.Maintenance free,there is no memory effect. 5.Internal BMS with full protection,battery has high voltage protection with higher reliability.
    6. Master and Slave all in one.
    Application
    Company Profile
    Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.
    4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-270s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1000V.
