Stackable LiFePO4 Battery System 204.8V high voltage BMS(HV BMS) For Home Energy Storage With 16S 51.2V Lithium Battery

Ask Lasest Price
Brand Name :	GCE
Model Number :	RBMS-Tower 50A204.8V
Certification :	CE/RoHS/MSDS
Price :	Negotiate with cara@hngce.com
Payment Terms :	L/C, T/T
Supply Ability :	1000+sets+month
Delivery Time :	30-45 days

Add to Cart

Product Details
Company Profile

Stackable LiFePO4 Battery System 204.8V high voltage BMS(HV BMS) For Home Energy Storage With 16S 51.2V Lithium Battery

Product Name

Stackable LiFePO4 Battery System 204.8V high voltage BMS(HV BMS) for home energy storage with 16S 51.2V lithium battery

HV Energy Storage System configuration – 204.8 V 100AH 50A

Stackable Home Energy storage System configuration – 204.8V 100AH 50A

Basic information:
Battery Type: LifePO4
BMS: 204.8V 50A BMS
Maximum Continuous Charge/Discharge Current:50A

Battery module: 16S 51.2V 100Ah
No. of modules: 4 modules connected in seires
System dimentions: 610*420*850 mm

Configuration:
204.8V 50A BMS * 1set
16S battery module: 4 sets

Product Feature:

1.Grade A Cells
Using high quality lithium iron phosphate battery as the main body
of energy storage, with feature of large capacity, light weight and
large power.
2.Flexible configuration
multiple battery modules can be stacked for expanding output and
Capacity.

3. Status In Real Time
LED lights display the parameters of the equipment in real time,
and the running status is clear at a glance.

4.High Capacity
The maximum capacity of a single cluster is 15.36kWh, and it
supports 16 clusters in parallel.

5.Good Compatibility
With CAN and RS485, compatible with most popular hybrid and
off-grid inverters in the market.

Specification & Technical data

Item
Decriptions
Product Name
Stackable BMS for Home energy storage system
Model No
RBMS-Tower 50A204.8V
Max. current
50A
operating voltage
100V-700V
Number of strings
64S (16S*4)
51.2V for a module battery pack
Cells qty of a single battery pack
16S
Power Consumption
≤15W
Protection level
IP20
Size(L*W*H)
610*420*1020 mm
Communication
Interface
Communication port with
BMU
can
Communication port with UPS
RS485/CAN
Communication port with
SBMS
RS485/CAN
Communication with
monitoring software
Ethernet
Current sampling accuracy
1%FSR
Basic Function
Battery charge & discharge management Available
Battery temperature management Available
IAP Upgrade Available
System protection parameter setting Available
Short circuit protection
Circuit breaker (6KA) + fuse (10KA)
Pre-charge function
Available
Parallel circulation
control
Available
Event record
Available(5000)
DC start
Available
Balancing
Passive balancing
PCS/Inverter protocol selection
YES
Optional function
Insulation detection
Optional
HMI display
4 inches
Stand-alone or parallel
function
YES/ can be switched through parameter setting, maximum 4 parallels.
Dry contact
Maximum 2 dry contact outputs
Installation method
Stacked docking
Incoming and
outgoing mode of Wires
Down in back out
Safety certification
Comply with CE certification standards
Comply with National standards
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
Operating Temperature
-20℃~60℃
Installation method
Suitable for standard 19-inch rack installation
Operating ambient humidity
5%~75%RH

Our Advantages:

1.high safety design - circuit breaker + fuse double short circuit
protection; Insulation resistance detection and monitoring system
leakage.2.advanced battery management system --- the highly integrated
battery management system can realize seamless monitoring
3.complete self inspection and operation status detection
functions, combined with HMI display, make the system operation
information clear at a glance.

4.Complete and reliable system control and protection strategies,
comprehensively
guarantee battery safety, and escort to extend the life of battery
packs .

5.Modular design, configurable and expandable---multiple energy
storage units can be flexibly combined and expanded into a larger
energy storage system

5.Abundant communication interfaces---multiple RS485, CAN, Ethernet,
dry contact input and output interfaces, supporting communication
with most PCS and monitoring servers on the market.
7.The communication interface protocol is flexible.--the factory
comes with the company's communication protocol, and it can also be
adapted to the PCS of different manufacturers according to customer
needs.
8.The built-in large-capacity memory chip can store a large amount of
key operating data and an SD card can be added to realize battery
historical data storage.
9.Automatic circulation control and automatic parallel/offline
control can easily realize the parallel connection of battery
packs.
10.WiFi function can be selected to facilitate cell phone or cloud to
view battery data and remote battery management.

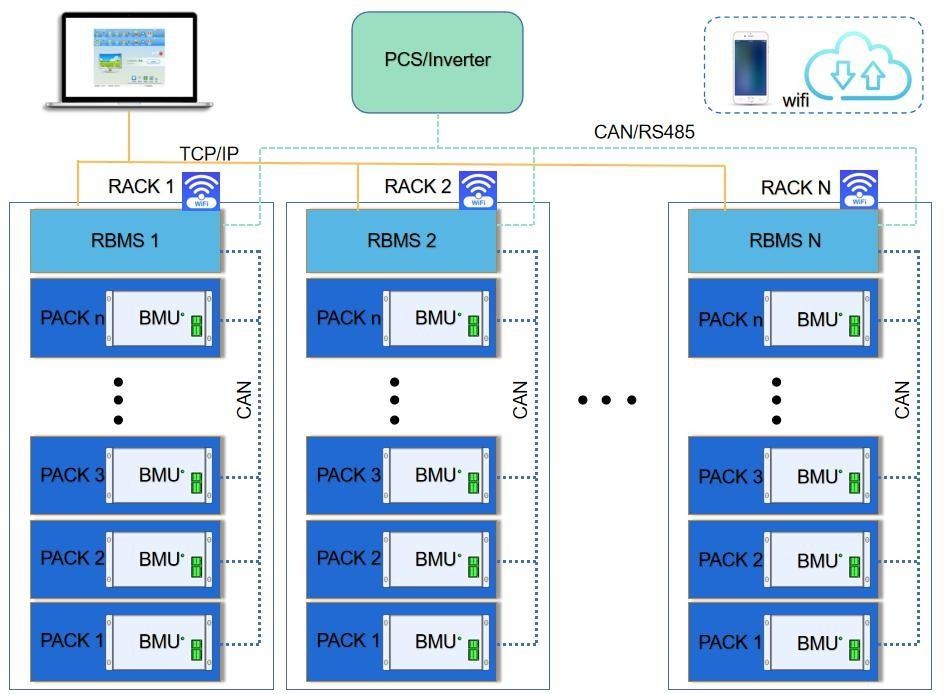

System topology diagram(4 parallels at most for Stackable home energy storage system)
Company Profile
Factory environment
Product Line
Assembling Line
Hunan GCE Technology Co., Ltd.is a high-tech company specializing in the research and development
of BMS and lithium battery peripheral equipment. We produce BMS
voltage from 48V to 1000V with master and slave three-level
structure solution.Our BMS products adopt a distributed architecture, modular design
concept, are highly configurable, easy to assemble, debug, and
maintain, and can meet the needs of a variety of projects.
Intelligent modular high-voltage BMS which is suitable for LFP &
NMC batteries in BESS, UPS, EV & For energy storage system
Lithium-ion battery solution Off grid Solar Energy Storage System
as well as Telecom Base Station battery Storage .
F&Q1. Are you a manufacturer or simply a trading company?
We are a manufacturer, and we sincerely welcome you to visit our
factory.

2. Can I get some samples?
Yes, a sample order is available for quality checking and market
testing.

3. What kind of cells are applicable to this Battery Management
System?
LFP, NMC, LTO

4. How about the delivery time?
The lead-time usually takes about 15 to 20 working days accordingly
to the specification of your order and
quantity.

5.What are your terms of payment?
Advanced T/T is the main payment term, and other payment terms are
negotiable. Please contact us, we’ll discuss the details.

6. What are your warranty terms?
We offer a 3-year warranty for RBMS,1-year warranty for PCB.

7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small
adjustments.

8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict
quality control processes from incoming material to the assembling
process. Each product will be tested before packing & shipping.

9. What Trade Terms are available?
No limitation on the trade terms. We normally do EXW for orders
amounts smaller than 20000USD, and FOB for the rest
ones.Moreover,we can send BMS via DHL&UPS&FEDEX quickly and
easily.

10. Is your BMS easy and convenient to install&test?
This is our the 4th generation high voltage BMS(HV BMS).It's an
overall bms solution, that is to say, you don't need professional
technology to install our high-voltage BMS to form a complete
battery system.

11.What benefits do customers get?
Our high voltage BMS(HV BMS) has complete battery charge and
discharge control logic and balance function between batteries. We
can also set various parameters of the system according to the
actual needs of customers to ensure the stability, reliability and
efficient performance of the system.

12:How to Contact with you?
You can contact with Cara for
quotation.Whatsapp&Skype:+8617321496453, Email:cara@hngce.com
