high voltage BMS(HV BMS) for Backup power supply 750v 512v 500A lithium ion battery packs in 19'' rack 3U 5U 4U 6U

◎ PV power plant storage

◎ Island off-grid energy storage

◎ optical storage charge integration applications

◎ Micro-grid applications

◎ UPS power supply

◎ Power System 220V DC power supply

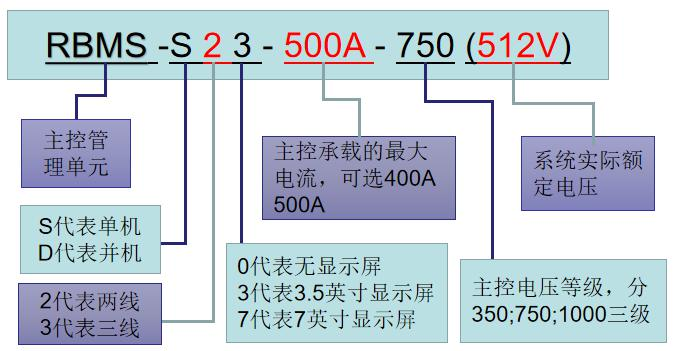

#Product Model Naming Rules

For Example: RBMS-D37-500A 750 (512V) represents the high-voltage series BMS main

control supports parallel, three-wire system, with a 7-inch display screen, the main

control voltage level is 750V, supports a maximum current of 500A, and a rated voltage

of 512V.

RBMS has three voltage levels: 350 represents the operating voltage range

120-350VDC; 750 represents the operating voltage range 260-750VDC; 1000 represents

the operating voltage range 500-1000VDC.

Regarding the calculation method of the actual rated voltage of the system: For

example, the system is composed of 10 16-series lithium iron phosphate battery modules

in series (10S16S), and the rated voltage calculated according to the nominal 3.2V

of the single unit is 10*16*3.2=512V; 8 15 The lithium iron phosphate battery modules

are connected in series (8S15S), and the rated voltage is 8*15*3.2=384V.

#Product System Overview

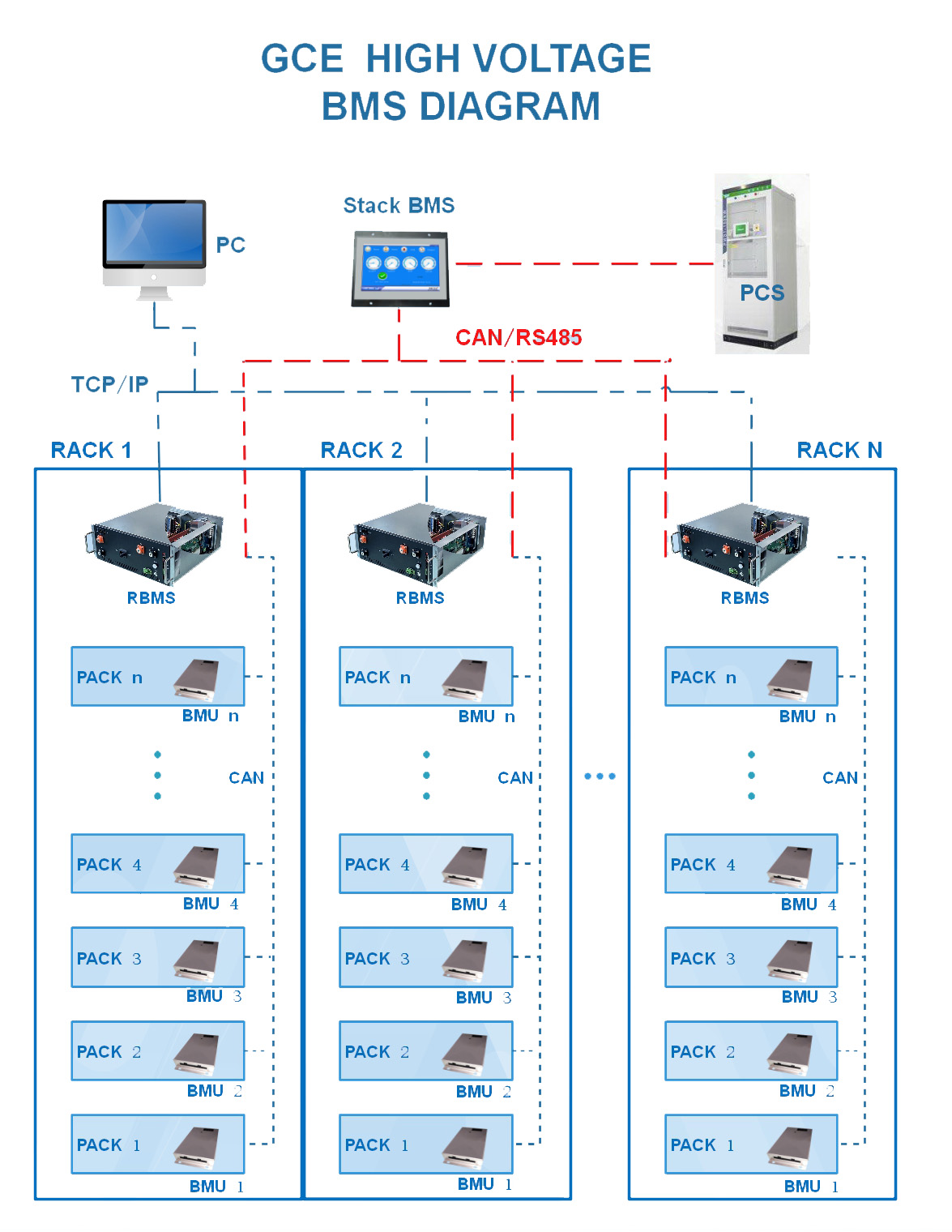

RBMS products are battery management systems developed for large-scale high-voltage battery

energy storage systems and UPS applications. It adopts distributed architecture and modular design

concept, which is highly configurable, easy to assemble, debug and maintain. It is suitable for

various battery energy storage systems with DC voltage below 1000V. This product can be

configured as a second-level architecture (BMU+RBMS) at least, which is suitable for

10KWh-100KWh occasions. Cooperating with industrial computer and battery stack management

software, it can form a three-level structure (BMU+RBMS+SBMS), which is suitable for

50KWh-2MWh occasions. Cooperating with the server and power station battery management

system software, it can form a four-level architecture (BMU+RBMS+SBMS+BBMS), which is

suitable for occasions from 2MWh to 1000MWh to meet different project requirements.

The product has a complete and reliable operation and protection strategy, which effectively

prolongs the service life of the battery pack. It comes with a variety of communication interfaces,

which can be directly or indirectly connected with third-party energy management systems.

#Product Feature

No.	Name	Description	Precautions
1	B+ B- N	Power port connected to battery side total positive, total negative, and neutral	Recommend to connecting bolt M10*16, torque 12-20N m
2	P+ P- N	Power port for connection to charging equipment (UPS) or DC bus	Recommended connecting bolt M10*16, torque 12-20N m
3	AC Input	The municipal power supply input port must be taken from the UPS/Inverter output side	85~264VAC 1A max
4	ON OFF	ON: The circuit breaker is ON. OFF: The circuit breaker is disconnected	When the handle of the circuit breaker is in the trip state in the middle position, it needs to be turned OFF before it can be closed again.
5	D1 D1 D2 D2	Two dry contact output reserved	Not yet open for use
6	Start	DC start button: start the RBMS system bytaking power from the battery side	The system is connected to the battery, after the circuit breaker is ON, press and wait for the light to turn on, indicating that the system is turned on
7	System	System status indicator	System normal: Green Alarm: yellow light Self test failure and protection status: red light Charging: green light flashes Discharge: red light flashing Self checking: red and green flashing alternately Pre-charging: yellow flashing
8	1 2 4 8	ID allocation: When multiple RBMS are used in parallel, the ID are allocated by setting the DIP switch. Must start at 1	There are 4 DIP switches in total, supporting up to 15 RBMS in parallel 1 ON: ID+1 2 ON: ID+2 3 ON: ID+4 4 ON: ID+8
9	TCP/IP	The RBMS host computer system software can be connected to the PC through the network cable	Network cable standard CAT5 or above, crossover cable or straight cable can be used, the line sequence can be according to the standard TIA-586A or TIA-568B
10	T-CAN T-485	Terminal matching resistance setting during can and 485 communication Setting Description: (120R), on is valid	In parallel application, only the last one needs to be set. In stand-alone application, it can be used flexibly according to site conditions (interference, communication distance, etc.).
11	COM-IN COM-OUT	RBMS external communication port: When multiple RBMS in parallel: Communication with SBMS When RBMS Stand-alone: communicate with UPS/PCS external devices	The shielded twisted-pair cable harness must be used randomly. The cable sequence is defined in the cable harness label
12	GND HMI-B HMI-A 24V	1.For external display connection 2.For powering SBMS	Please connect the display screen according to the silk screen sequence
13	BMU-OUT	Communication interface with BMU	Cascaded communication between BMU
14		RBMS chassis ground	Must be grounded, and the grounding resistance is less than 1Ω
