    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS-S23-50A-350
    Certification : CE/RoHS/MSDS
    Price : negotiate with cara@gcebms.com
    Payment Terms : L/C, T/T
    Supply Ability : 5000 sets/per month
    Delivery Time : 15-25 days
    • Product Details
    • Company Profile

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Solar energy storage BMS 240V 50A lithium Battery BMS Match With Deye Goodwe Sofar inverters 10KW 20kWh ups application

    GCE has over 10 years of experience in high voltage BMS R&D and manufacturing in China. The BMS voltage up to 1500V, mainly used for LFP, NMC, and LTO batteries in applications such as UPS, residential, commercial & industrial energy storage system.

    GCE BMS supports multiple parallel connections and can be configured as a two-level or three-level architecture, making it suitable for a wide range of applications from KWh to MWh.

    GCE BMS is compatible with well-known inverter brands in the market, such as Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow Goodwe, Megarevo, Voltronic power and more.

    BMS Introduction

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    SPECIFICATION
    Basic Parameters
    Max current
    50A
    Rated voltage
    350V, 500V(according to the rated voltage)
    Power consumption
    ≤15W
    Current sampling accuracy
    1%FSR
    Insulation withstand voltage
    2800VDC <1mA 1min
    Protection level
    IP20
    Dimension(W*H*D)
    482*89*500(mm)
    Net weight
    ~10Kg
    Communication Port
    Communication port with BMU
    CAN
    Communication port with UPS
    RS485/CAN
    Communication port with SBMS
    RS485/CAN
    Communicate with PC software
    Ethernet
    Basic Functions
    Battery charge and discharge management
    Support
    Battery temperature management
    Support
    IAP upgrade
    Support
    System protection parameter setting
    Support
    Short circuit Protection
    Support(6KA 20ms)
    Precharge function
    Support
    Parallel loop current control
    Support
    Event record
    Support 5000 records
    DC start
    Available(Battery powered,Mains supply is
    only for the signal to start on and off the BMS)
    Incoming and outgoing wire method
    Front side in and front side out
    Optional Functions
    Monitor Insulation
    No
    HMI display
    3.5 inches(Embedded in the chassis)
    Standalone or Parallel
    Set-up completed before leaving the factory
    Dry contact
    Maximum 2 dry contact outputs
    Others
    Color
    RAL9005 black sand grain
    Operating ambient temperature
    -20℃~60℃
    Operating ambient humidity
    5%~75%RH
    Compliance with national standards
    GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
    Certification
    CE

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application
    Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.


    4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-410s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1500V.
    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Application

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

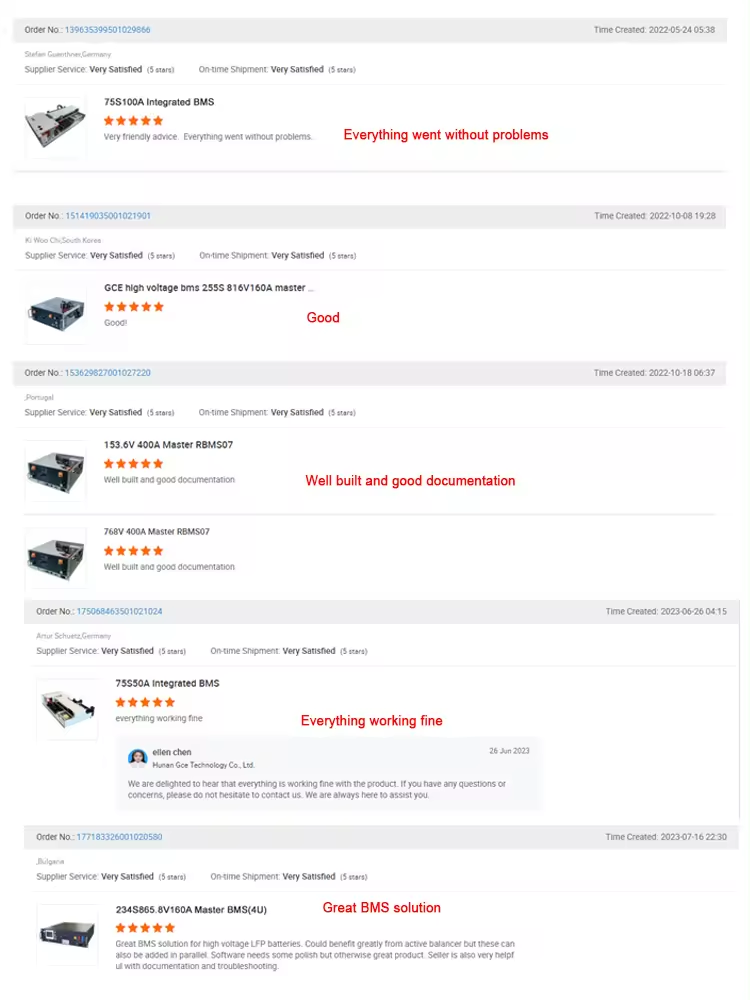

    Buyer Reviews

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application

    Packing and Shipping:

    High Voltage BMS Packaging and Shipping:

    1.The High Voltage BMS is securely packaged in a cardboard box with adequate cushioning material.
    2.The box is sealed with adhesive tape and labeled with the contents and shipping address.
    3.The package is placed inside a larger cardboard box for double protection.
    4.The outer box is sealed with adhesive tape and labeled with the contents and shipping address.
    5.The package is shipped via a reliable courier service.

    Solar Energy Storage BMS 240V 50A Lithium Battery BMS Match With Deye Goodwe Sofar Inverters 10KW 20kWh Ups Application
