    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    Ask Lasest Price
    Brand Name : GCE
    Model Number : RBMS09-S45S-100A
    Certification : CE UL
    Price : negiociate with cara@hngce.com
    Payment Terms : L/C, T/T
    Supply Ability : 1000+pcs+per month
    Delivery Time : 7-21 working days
    • Product Details
    • Company Profile

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    GCE 75S 100A 144v Integrated BMS Lifepo4/NMC/LTO batteries high voltage battery management system master and slave all in one

    GCE has over 10 years of experience in high voltage BMS(HV BMS) R&D and manufacturing in China. The BMS voltage up to 1500V, mainly used for LFP, NMC, and LTO batteries in applications such as UPS, residential, commercial & industrial energy storage system. GCE BMS supports multiple parallel connections and can be configured as a two-level or three-level architecture, making it suitable for a wide range of applications from KWh to MWh. GCE BMS is compatible with well-known inverter brands in the market, such as Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow Goodwe, Megarevo, Voltronic power and more.

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management SystemGCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management SystemGCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    SPECIFICATION

    Basice parameters
    System operating voltage range
    120-370 VDC
    Rated current
    50A / 100A
    Start-up method
    DC start
    Balancing type
    Passive resistance equalization
    Balancing current
    100mA ± 10mA(when single cell voltage 3.50V)
    Temperature Sampling accuracy
    ± 2℃
    Voltage sampling accuracy
    Single cell voltage ±20mV
    Communication mode
    CAN: 1 channel (communication with PCS/UPS)
    TCP/IP:1 Channel(Communicate with the PC computer software)
    RS485: 1 channel ( communication with host computer / PCS / UPS)
    Dry contact
    2 Channels(The default definition is to prohibit charging and prohibit Discharging):0.5A/30VDC
    Fan control
    1 Channel(24V/0.5A)
    Display
    Display method
    6-digit LED indicator (including 1 for fault indication, 1 for running indication, and 4 for SOC power indication)
    HMI display
    3.5-inch and 7-inch are optional
    Host computer software
    Available
    Others
    Short circuit protection
    Support circuit breaker 7.5KA 20ms; fuse 20KA (optional)
    Maximum overload capacity
    50A system transients:70A/10S
    100A system transients:150A/10S
    Parallel function
    Support parallel use (maximum 7 set in parallel)
    Warning level
    1 level
    Protection level
    Level 1 cut off charging/discharging
    Level 2 cut the micro-break switch and power down the system
    Power consumption
    ≤10W
    Size
    409*232*86mm
    Weight
    4.5kg
    Insulation withstand voltage
    1800VDC 1mA 1min
    Compliance with national standards
    Conforms to CE standards
    Operating ambient temperature
    -20~60℃
    Operating ambient humidity
    <90 RH(40℃±2℃)

    What you will get

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management SystemGCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management SystemGCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

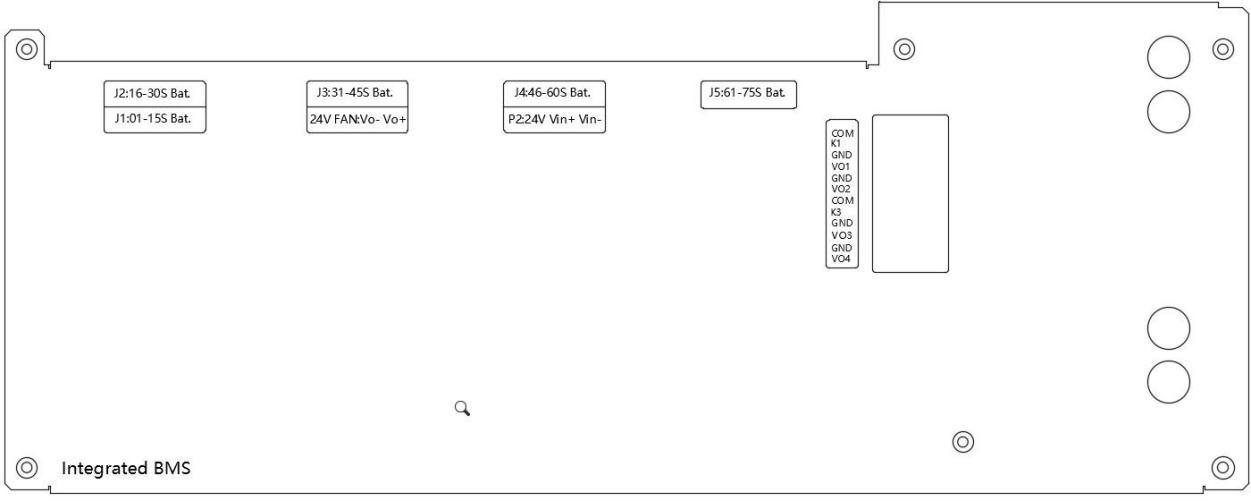

    DIMENSIONS AND INTERFACES

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management SystemGCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    Company Intrroduction

    Hunan GCE Technology Co., Ltd.(GCE) is a high-tech company specializing in the R&D and production of BMS and battery energy storage systems for over 10 years. Our products are mainly used for industrial & commercial energy storage and home energy storage.


    30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users.
    60s-405s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1500V.


    7.68KWh-40.96KWh Stackable Home Energy Storage System support 3-8 HV battery modules that are connected in sereis, with small volume, light weight, plug-in embedded design modules, Built-in smart BMS, easy to install and maintain.

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    Buyer Reviews

    GCE 75S 100A 144v Integrated BMS Lifepo4 / NMC / LTO Batteries High Voltage Battery Management System

    FAQ

    Q: Are you a manufacturer or a trading company?
    A: We are a manufacturer with over 10 years of R&D experience in production. and we sincerely welcome you to visit our factory.

    Q: Can I get some samples?
    A: Yes, a sample order is available for quality checking and market testing.

    Q: What kind of cells are applicable to this Battery Management System?
    A: LFP, NMC, LTO etc.

    Q: How about the delivery time?
    A: The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.

    Q: What are your terms of payment?
    A: Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us for the details.

    Q: What are your warranty terms?
    A: 3 years for RBMS and 1 year for BMU/PCBs

    Q: Can you produce BMS with customization requirements?
    A: Yes, OEM & ODM service is acceptable.

    Q: How does your factory do regarding quality control?
    A: Quality always comes first. All our products go through strict quality control processes from incoming material to the
    assembling process. Each product will be tested before packing & shipping.

    Q: What is the voltage range supported by GCE high voltage BMS(HV BMS)?
    A: GCE high voltage BMS(HV BMS) supports a voltage range from 96V to 864V.

    Q: What is the current capacity range available for GCE high voltage BMS(HV BMS)?
    A: GCE high voltage BMS(HV BMS) offers current options of 50A, 125A, 160A, 250A, 400A, and 500A to accommodate various system requirements.

    Q: Which inverters are compatible with GCE BMS?
    A: GCE BMS supports CAN & RS485 protocols and it is compatible with the protocol of most well-known inverter brands in the market, such as DEYE, Growatt, Goodwe, Sofar, Sungrow, Kehua, ATESS, Megarevo, Sinexcel, Pylontech, Solis Sermatec......
