To make high voltage battery systems easy to install with GCE BMS!
4 Years
| Ask Lasest Price | |
| Brand Name : | GCE |
| Model Number : | RBMS07-S23-125A460.8V |
| Certification : | CE UL TUV |
| Price : | negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 1000sets/month |
| Delivery Time : | 20~25days |
| MOQ : | 2 sets |
High Voltage Master BMS:
Sample Drawings Of Standard Products:
Specification:
| Product Name | BMS(Battery Management System) |
| Model no. | RBMS07-S23-125A460.8V |
| protecting method | MCCB+Contactor |
| Rated Current range | 250A |
| Voltage Range | 96V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plugin) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 3U (482*132*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 23 kgs |

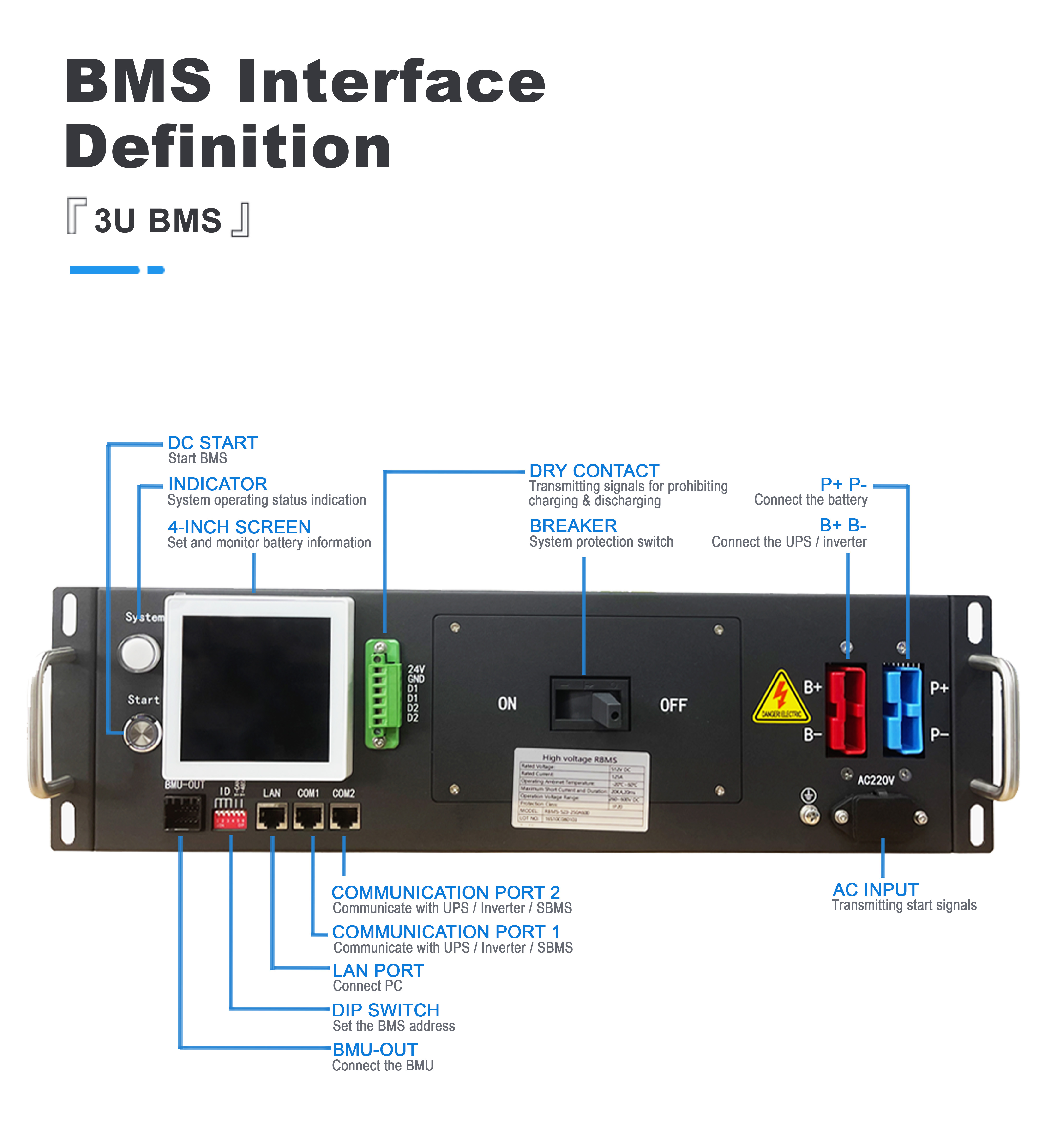

Communication:
Communication Interface
Communication port with BMU: CAN
Communication port with UPS: RS485/CAN
Communication port with SBMS: RS485/CAN
Communication with monitoring software: Ethernet
Current sampling accuracy: 1%FSR
BMS SYSTEM STRUCTURE:
Applications:
|
|
